Raspberry Pi X830 V2.0 3.5 Inch SATA HDD Storage Expansion Board with Power Supply/Adapter for Raspberry Pi 3 Model B+(Plus)/3B-in Demo Board Accessories from Computer & Office

Scroll to product details, material & care and sizing

$ 48.22

Add to cart Add to wishlist

Term:
cf ide, itx power supply, clasp hook, Wholesale raspberri pi 3 sata, Wholesale itx power supply, Wholesale svarosvki, Wholesale charm scissor, Wholesale pine64, Wholesale clasp hook, Wholesale contact point, Wholesale hdd sata connector for laptop,

Raspberry Pi X830 V2.0 3.5 Inch SATA HDD Storage Expansion Board with Power Supply/Adapter for Raspberry Pi 3 Model B+(Plus)/3B Details & Specification :

Item Specifications
Brand Name Geekbord
Compatible With Raspberry Pi 3 Model B+(Plus)/3B/2B/B+
Accessory Type Extension Board

Customers also bought



PRODUCT Description

Packing List:

Bundle 1:

  • 1 x X830 V2.0 Expansion board
  • 1 x USB 3.0 cable(Length:80cm/2.62 inch)
  • 1 x USB connector
  • 1 x 4pin cable with adapter
  • 1 x Pack of screws
  • 1 x EU Plug Power Supply

Note:

The reaspberry pi 3 model b+ motherboard & 3.5 inch HDD are not included.

Overview:
  • This is the X830 V2.0 expansion board(Updated Version of X830 V1.1Board) , it adds safe shutdown function, and supports system installation on hard disk and startup. Provides a complete storage solution for raspberry pi, you can also DIY a small NAS, music player or something interesting with our X830 expansion board.

WARNING:

1/ Do not apply power to your Raspberry Pi via the Pi's micro-USB socket.
2/ The X830 v2.0 board uses the more commonly used DC12V power adapter; please do not use a power adapter of other voltage values, otherwise it may damage your hard disk and motherboard; this is very important!!!

Features:
  • Support safe shutdown (please refer to the following or github for installation script);
  • Use the more commonly used DC12V power adapter;
  • Added screw hole position for large capacity hard disk (feedback from customer);
  • Using a new driver chip, support for installing the system and booting on the hard disk
  • Supports up to 10TB 3.5-inch SATA hard disk drives (HDD)
  • Operating System: All Raspberry Pi operating systems
  • Supports upto 10TB 3.5-inch SATA HDD hard disk drives
  • Ideal storage solution for Raspberry Pi
  • USB 3.1 Gen1 to SATA 6Gb/s Bridge Controller
  • USB 2.0 connectivity offers plug-and-play functionality on your Raspberry Pi(Raspberry pi only support USB 2.0 now.)
  • Quick file transfer with high-speed USB 3.0 connectivity from a PC or a Mac
  • User Guidance or more details, please refer to:  www.raspberrypiwiki.com/index.php/X830_V2.0



Notice:
DO NOT APPLY POWER TO YOUR RASPBERRY PI VIA THE PI's MICRO USB SOCKET!



Specification of Power Supply:

  • AC Adaptor
  • Model: MX-24W
  • Input: AC 100-240Vac
  • Output: 12V-3A
  • DC Jack: 5.5x2.5mm
  • Lenght: Total:85cm/33.46inch
  • Frequency: 50/ 60Hz
  • Caution: Indoor Use Only

Notice:
DO NOT APPLY POWER TO YOUR RASPBERRY PI VIA THE PI's MICRO USB SOCKET!



x830-v2.0_drawing-970x600

100% real shooting

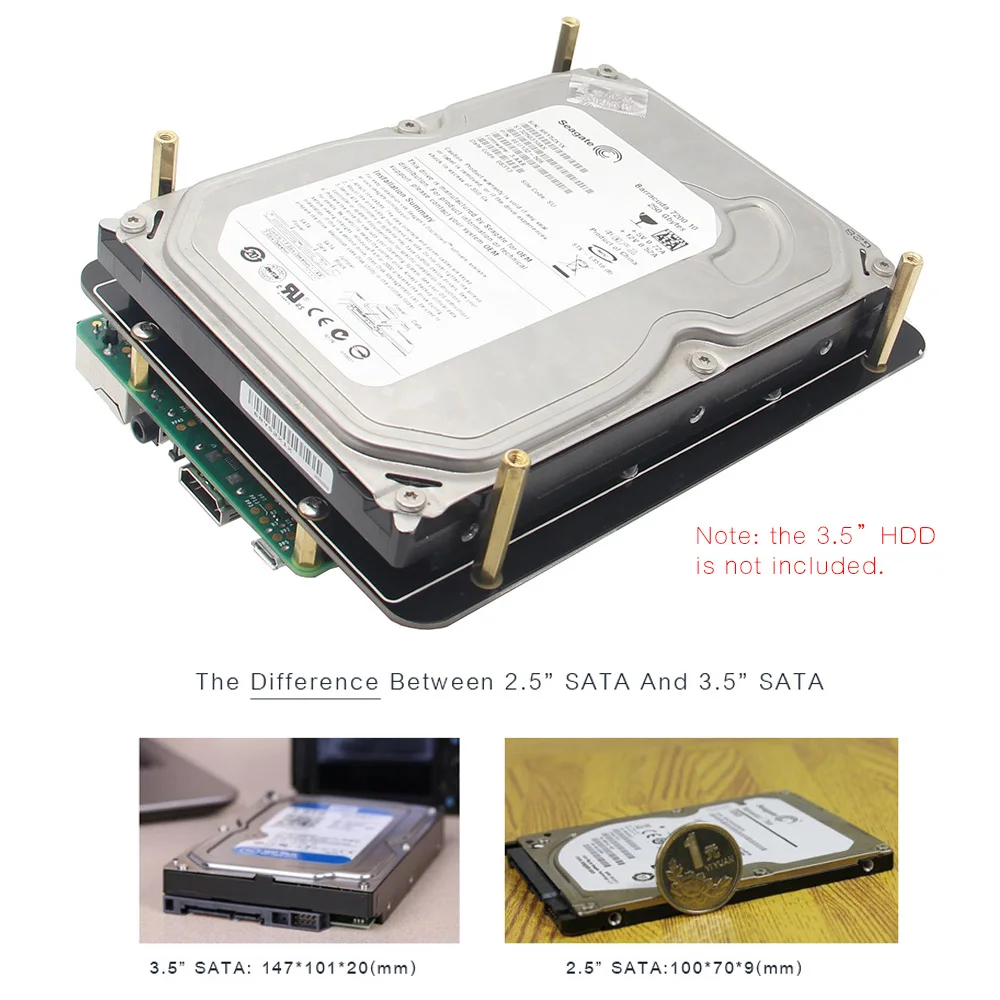

X830

X830-1



IMG_4245-SATA



970X600
