100pcs TMC2208 v1.2 Stepping Motor Mute Driver Stepstick Power Tube Built in Driver Current 1.4A Peak Current 2A Replace TMC2100-in 3D Printer Parts & Accessories from Computer & Office

Scroll to product details, material & care and sizing

$ 362.54

Add to cart Add to wishlist

Term:
tcm2130, driver motor stepper, driver for 3d printer, Wholesale tcm2130, Wholesale driver motor stepper, Wholesale driver tmc2208, Wholesale modern ottoman, Wholesale addon, Wholesale duetwifi, Wholesale skr, Wholesale tmc5161, Wholesale tmc2209,

100pcs TMC2208 v1.2 Stepping Motor Mute Driver Stepstick Power Tube Built-in Driver Current 1.4A Peak Current 2A Replace TMC2100 Details & Specification :

Item Specifications
Brand Name FYSETC
Item Type Driver
Model Number TMC2208 V1.2
feature stepstick TMC2208
module name TMC2208 V1.2
advantage Replace TMC2100
use for 3d printer parts
compatiable motherboard for LERDGE/MKS m
benefit super silent
current 1.4A Peak Current 2A
microsteps 256
with heatsinks yes
gift anti-static screwdrivers



100pcs TMC2208 v1.0 Stepping Motor Mute Driver Stepstick Power Tube Built-in Driver Current 1.4A Peak Current 2A  Replace TMC2100



01

TMC2208 single-axis stepper motor drive chip, power tube built-in drive current 1.4A peak current 2A, voltage range 4.75V-36V, 256 subdivision; with patented technology spreadCycle ™ high chopper frequency, dcStep ™, stallGuard2 ™ stall detection technology, CoolStep ™ current dynamic adjustment technology, can save 70% of the energy, StealthChop mute technology


Flexible microPlyer interpolation unit, the component can provide up to 256 microstep / step resolution, even in the pulse rate is limited system can still be perfect to achieve sinusoidal control; As stealthChop fine music technology is widely used in 3D printing, so These components are also designed to be compatible with existing 3D printer electronics, eliminating the need for costly redesign. Both components have pulse / direction input, can be completely independent operation. The configuration is implemented via digital input.

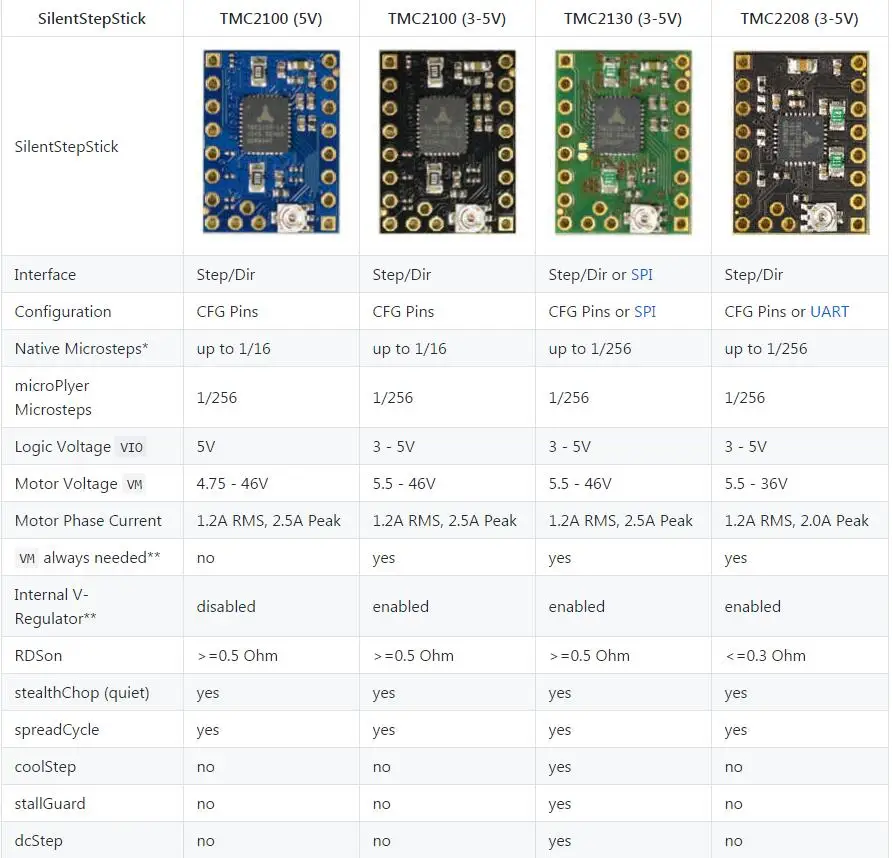

Can replace the original TMC2100 ,lower heat, especially for the 3D printing market!!!

   note:
every body have the only screwdriver,if you order more and need more screwdriver,pls contact us.   if not,we will only send out one.


 more information for the TMC2208:

The latest version of the TMC2208 V1.2 takes the UART out and uses the UART function directly, eliminating the need for more wiring. Especially for the F6 motherboard, the effect is more obviously!

If  you want the F6,pls click this link
/item/FYSETC-F6-V1-3-Board-ALL-in-one-Electronics-Solution-Mainboard-6X-Special-TMC2208-V1-2/32914190940.html

if u want the Tester TMC2208,  please click below picture for purchase.
08



02

IMG_6813IMG_6815IMG_6822IMG_6823IMG_6830IMG_6831IMG_6842IMG_6843
